Fully hydraulic drive vibrating screen

VGM50:

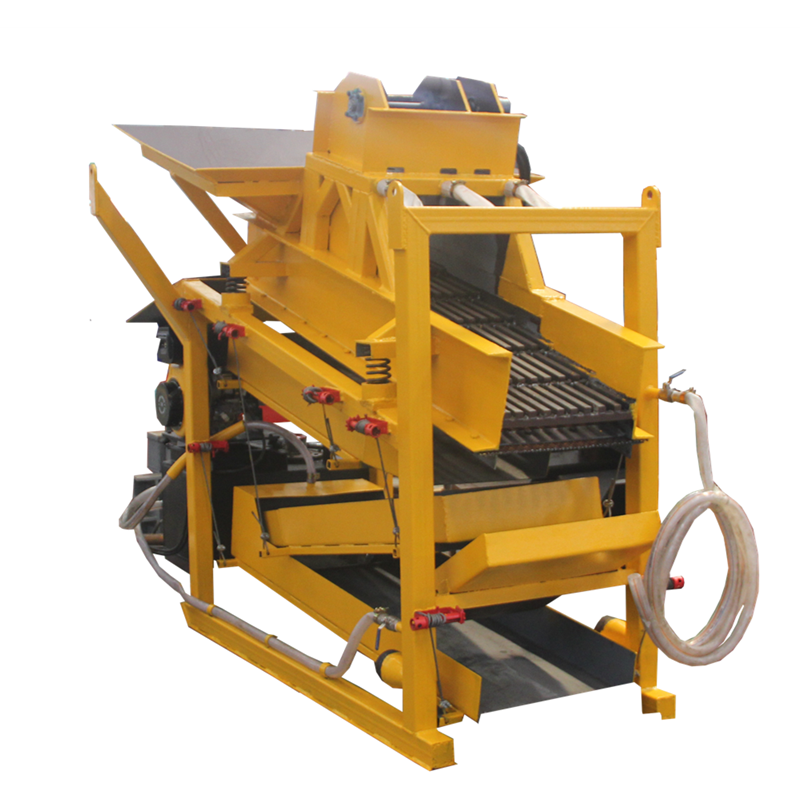

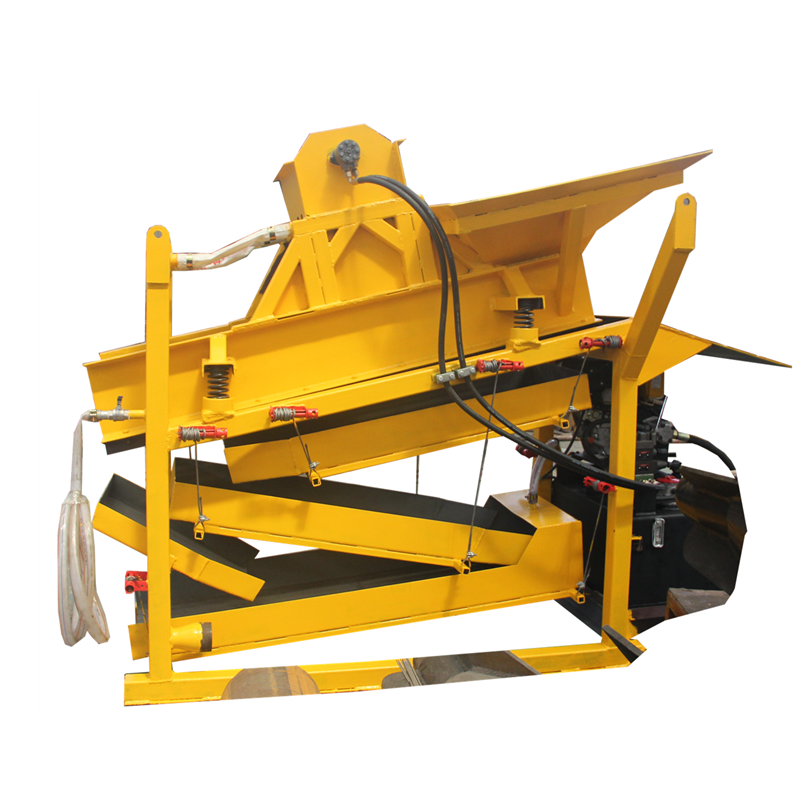

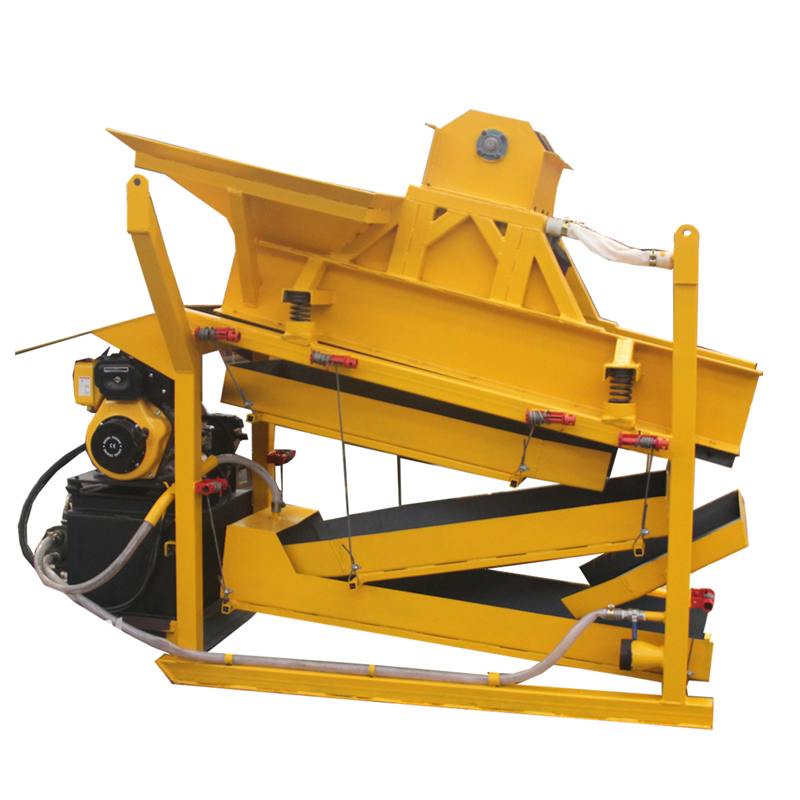

All-in-one Gold Mining Wash Plant
Each machine is a complete portable plant; there is no need for additional screens or sluice boxes! At the top is an extreme duty grizzly bar section that will take up to 24-inch rocks (91 cm). Classification begins when the material is placed on the grizzly bars, and high-pressure water separates the sub-1” (25.4 mm) material from the large rocks. Next, the screen deck further classifies the material, and sub-.25” (6.35 mm) material drops into the sluice boxes, remaining sub-1” material passes through the nugget trap into the final.

All of the drives are fully hydraulic, without electricity.Our system is driven directly by a hydraulic motor without a belt or chain drive, which means that a lot of transmission mechanisms are reduced.Hydraulic drive system can reduce fuel consumption and reduce mechanical loss.
