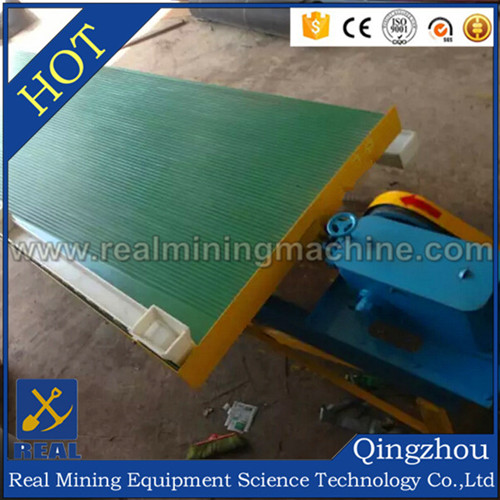

Shaking table for gold separating

Features

High recovery ratio

High concentration ratio

Easy installation

Simple operation

Deck constructed of fiber glass

Seven different decks to   choose

Long working life

Adjustable stroke length and speed

Construction and mechanical features

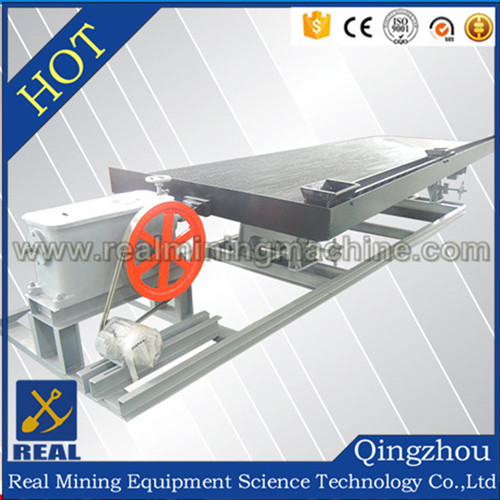

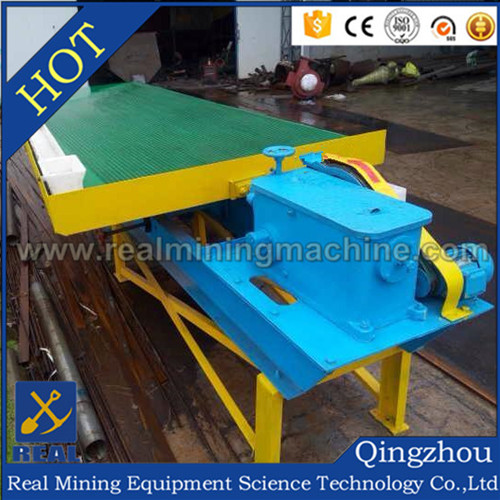

Head Motion  shaking tables are furnished with a totally enclosed self-oiling head motion of heavy cast iron to contain an oil reservoir for perfect splash lubrication.This feature protects the moving parts, reducing operating and maintenance costs to a minimum.

ecks   The decks are constructed of steel framework and covered 16mm fiberglass with emery, this cover its strength reaches as high as 70% of steel, the features of this design are stronger, wear-resistant,

corrosion-resistant, and no distortion, it lengthens the working-life of machine and thus allows machine perform perfectly on different mineral and different weather condition.

Support types  Traditionary type, 10# channel steel support or 20# channel steel support are available.

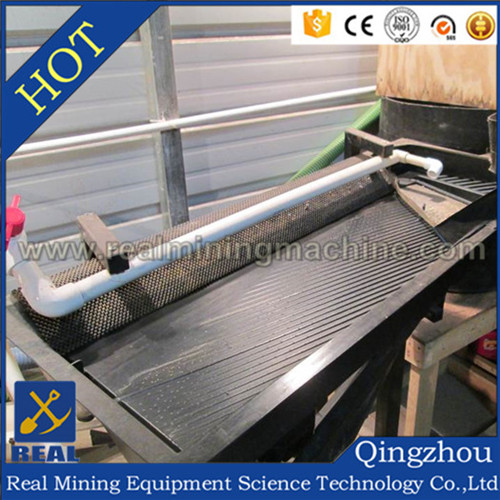

Feed and Water Box   A wooden feed distributing box with hopper and a long water

box are attached to the iron of the deck, giving a very even distribution of feed and water.

Technical Specification  The Shaking Tables have three distinct deck designs available.

The coarse ore deck is designed for recovering particles size from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of 0.074

mm to 0.5 mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.02 mm to 0.074 mm.
